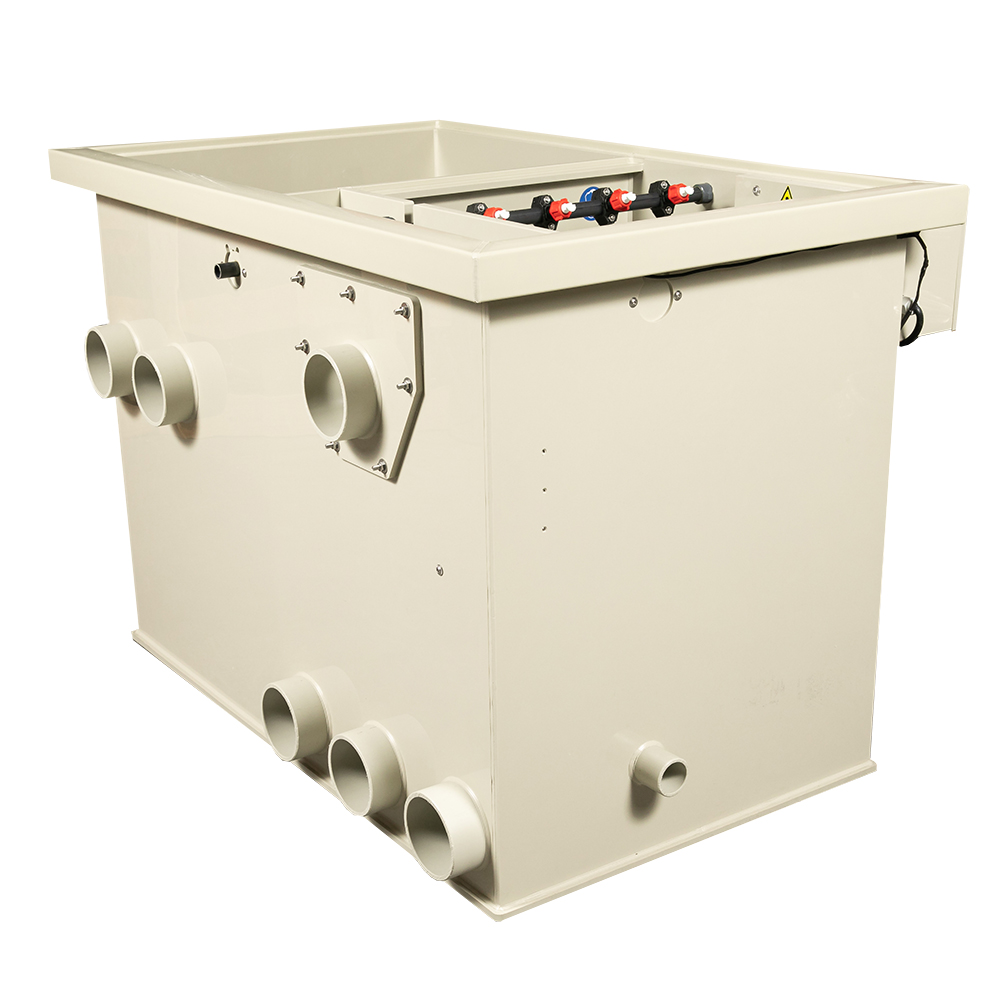

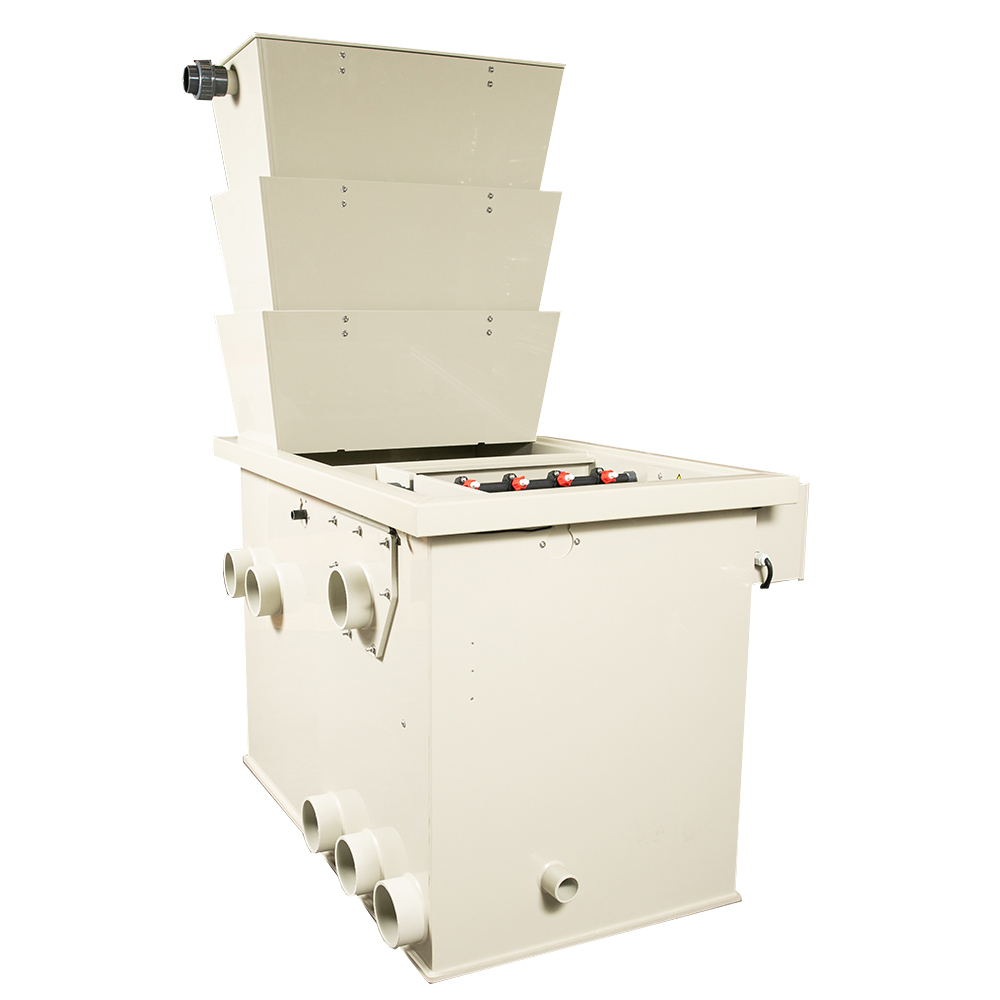

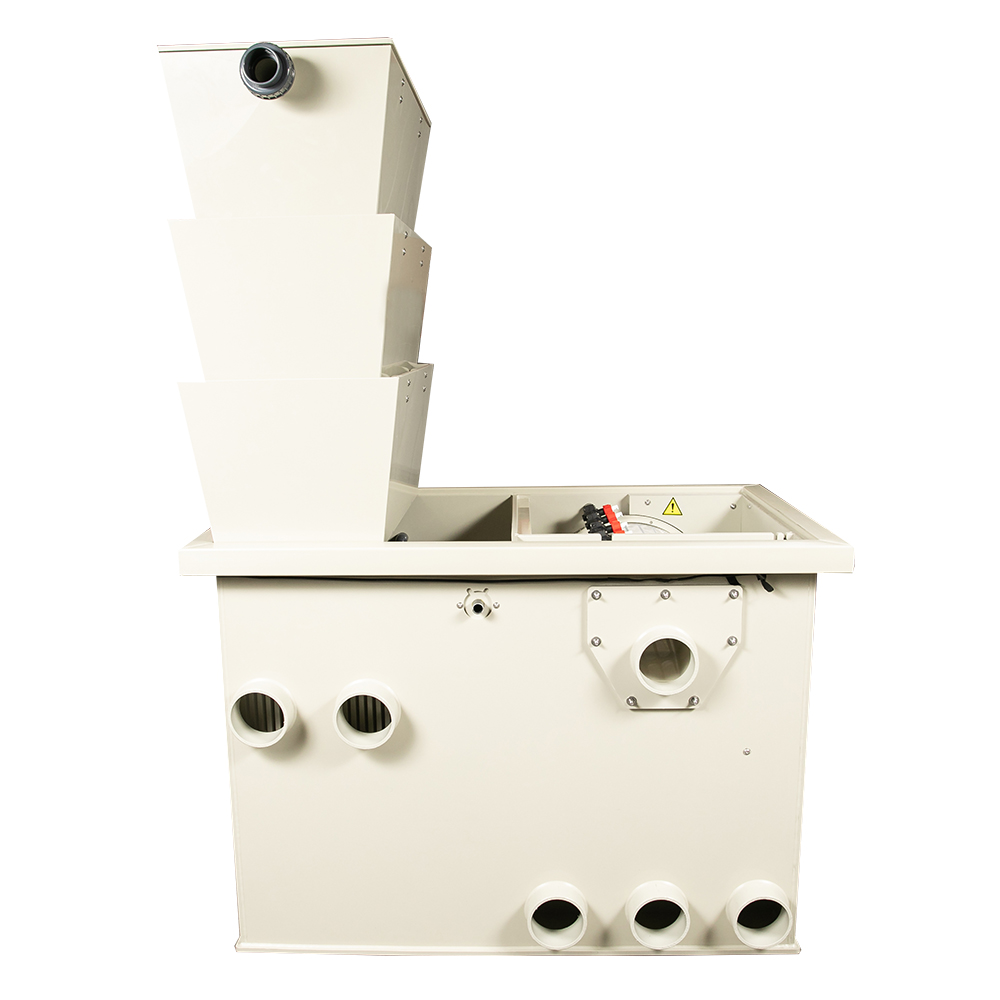

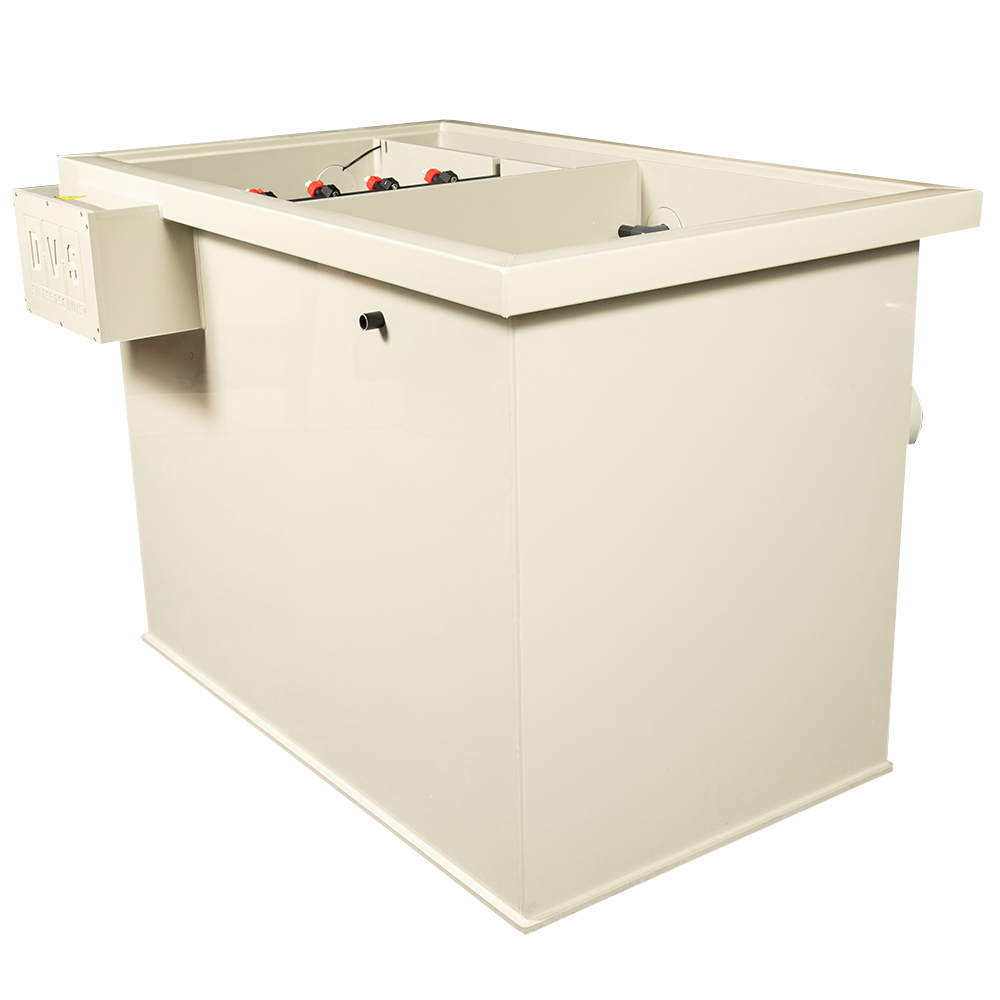

DRUM FILTER ENTRY C25


ENTRY-C25-DVS-filtertechniek
ENTRY-C25-DVS-filtertechniek
ENTRY-C25-DVS-filtertechniek
ENTRY-C25-DVS-filtertechniek
ENTRY-C25-DVS-filtertechniek
PP50-DVS-filtertechniek
DVS-filtertechniek

Technical details ENTRY C25

Maximum Flow 25 m3/h
Gravity / Airlift / Pump feedĀ
Pump Version has 30% less capacity
Water running height 17 cm

Material:

Housing PP 10/15 mm / Drum PP 20
RVS 316/304 / Silicone sealant
Precise CNC machine cut PP-construction

Specifications:

Standard inputs and outputs acc. drawing
1 x 110 mm Waste Outlet

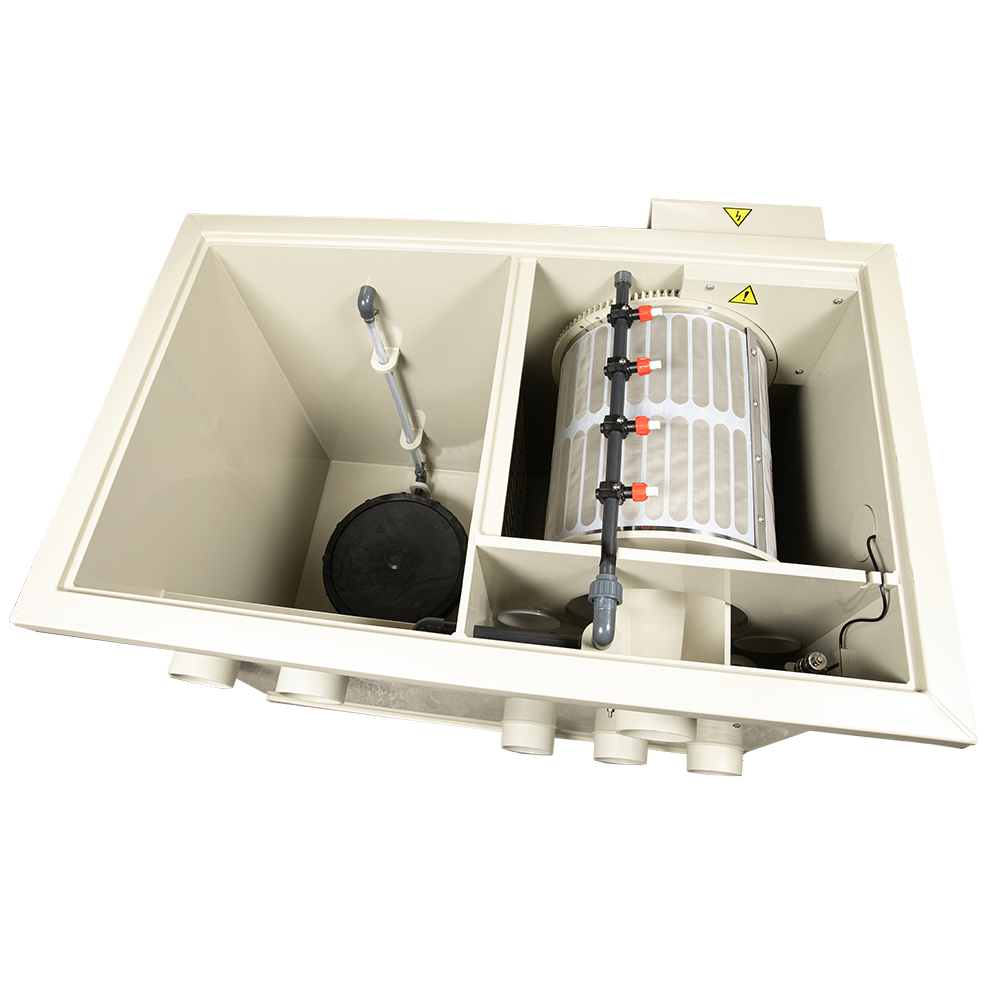

Diameter of drum 40 cm x 40 cm
Patented woven 75 micron steel mesh
2 x 90 mm Drum-Bypass
Removable spraybar
Removable waste water gutter
40 NM drive motor with 2,5 RPM
Space for 150 Liter Helix
1 Airdisc 35 cm
With cover

Control panel:

Automatic cleaning, plug and play with stainles steel float switch
Manual operation run/wash
Cleaning (turn/flushing) time adjustable
Cleaning level adjustable
3 plugs to have control over Drum filter motor , Cleaning and Pond-pump
Standard dry run protection for pond pump

All components built into modules wich quickly changeable
Comes with detailed instructions
CE approved

Warranty 2 years (not on the Sieve!)
